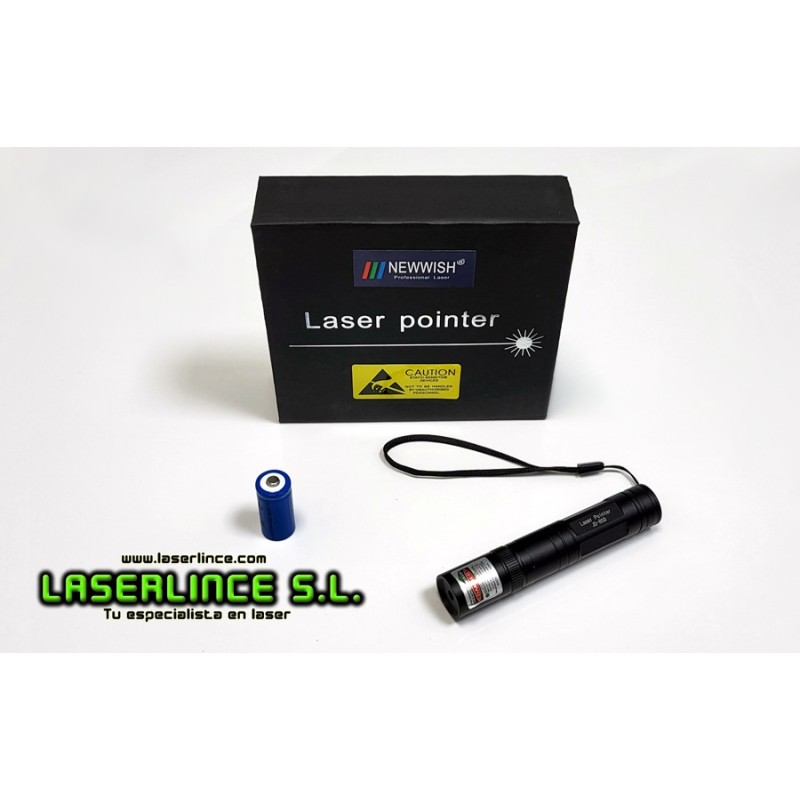

Green laser pointer with ON/OFF switch (NewWish , Ltd.®)
Power: 50mW
Wavelength : 532nm (color = green)
Range of the laser beam: 2-3km approx. (in darkness)
It is an ideal laser pointer for night marking, thanks to the fact that it emits a visible laser light beam.
It is especially suitable for use in astronomy, audiovisual shows as well as for a multitude of applications in the area of engineering, optics, physics and construction
The reason why green laser pointers are the most used when high visibility is required; This is because the photoreceptors in the human eye (the cones) are more sensitive to green light than to light of other colors (or wavelengths). Therefore, a beam of light from a green laser can be seen with more intensity or brightness than the equivalent of the same power in other colors, such as red or violet.
It is a laser pointer recommended for the average user, who needs a laser pointer with an ON/OFF switch on the back
|
ESPEFICIFICACIONES TÉCNICAS |
||
|
Características |
Detalles |
Unidades |
|
Potencia óptica |
50 |
mW |
|
Clase (según la norma IEC 60825-1) |
IIIB |
|
|
Longitud de onda de emisión (λ) |
532 (verde) |
nm |
|
Modo de funcionamiento |
CW (continuo) |
|
|
Fabricante |
NewWish, Ltd. |
|
|
Dimensiones |
112 (largo) X 20(diámetro) |
mm |
|
Voltaje de funcionamiento: |
3-4,5 |
VDC |
|
Intensidad de funcionamiento: |
<600 |
mA |
|
Alcance aproximado en la oscuridad |
4-5 |
km |
|
Baterías (incluidas) |
1 X CR123A |
|
|
Instrucciones (incluidas) |
(en Español) |
|
|
Laser verde DPSS (compuesto de: 1-2-3): |
||
|
1º Diodo láser de bombeo: 808nm |
AlGaAs IR |
|
|
2º Láser de estado sólido: 1064nm |
YVO4 dopado con Nd al 2% |
|
|
3º Cristal doblador de generación de segundo armónico: 532nm |
KDP KH2PO4 |
|
|
Cavidad láser |
Recubrimiento multicapa |
|
|
Filtro IR |
Incluido |
|
|
Diámetro del haz |
0,75 +/-0,05 |
mm |
|
Divergencia |
>0,5 |
mrad |
|
Modo transversal electromagnético |
TEM00 |
|
|
Tiempo de precalentamiento |
<1,0 |
s |
|
Temperatura de operación |
+10 ~ +55 |
°C |
|
Temperatura de almacenamiento |
-40 ~ +85 |
°C |
|
Vida útil de funcionamiento: |
>6000 |
h |
|
Homologación |
CE (Directiva 93/68/EEC) |
|
