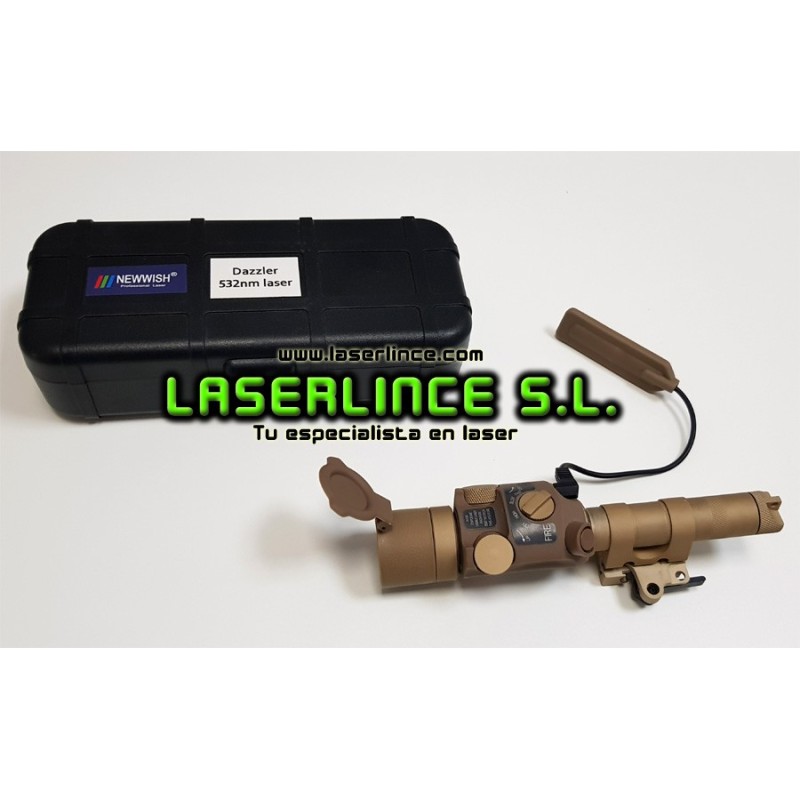

LD Dazzler 50mW (532nm) "Glare type" green laser pointer
€185.00
Tax included
Envíos
Dazzler green laser pointer, "Glare type" model (Newwish Optoelectronics Co., Ltd. ® )
Power: 50 mW
Wavelength: 532nm (color = green)
Laser beam range: 2-3km approx. (in darkness)
It is an ideal laser pointer for tactical use allowing:
- In "pointer" mode: for signaling over long distances and as a dazzler at distances greater than 100-200m
- In "expanded beam" mode especially for use as a dazzler at short distances between 5 and 100m.
It also incorporates a quick mount for a 20mm picatinny rail
The "Dazzler" systems can be considered "non-lethal weapons", the direction of its laser beam prevents vision temporarily without causing eye damage, provided that its use is respected at a distance of use greater than the minimum NOHD "Nominal Ocular Hazard Distance ".
Its use as a Dazzler is restricted to the State Security Forces and Corps.
According to the latest scientific studies in non-lethal weapon systems technology, the optimal pulse frequency for use as a non-lethal weapon is 3-15Hz; the green wavelength being 500-560nm, one of the optimal for use for 1-band emission systems
This Dazzler laser pointer includes 3 power modes:
- Always ON
- Pulsed 1Hz, NOHD: 100m
- Pulsed 3 Hz, NOHD: 4m
|
ESPEFICIFICACIONES TÉCNICAS |
||
|
Características |
Detalles |
Unidades |
|
Potencia óptica |
50 |
mW |
|
Clase (según la norma IEC 60825-1) |
II (expandido) o IIIB (haz colimado) |
|
|
Longitud de onda de emisión (λ) |
532 (verde) |
nm |
|
Modo de funcionamiento |
CW (continuo) |
|
|
Fabricante |
Newwish Optoelectronics Co., Ltd. |
|
|
Dimensiones |
200 (largo) X 35(diámetro) |
mm |
|
Voltaje de funcionamiento: |
3-4,5 |
VDC |
|
Intensidad de funcionamiento: |
<600 |
mA |
|
Alcance aproximado en la oscuridad |
2-3 |
km |
|
Baterías (incluidas) |
2 X CR123A |
|
|
Instrucciones (incluidas) |
(en Español) |
|
|
Laser verde DPSS (compuesto de: 1-2-3): |
||
|
1º Diodo láser de bombeo: 808nm |
AlGaAs IR |
|
|
2º Láser de estado sólido: 1064nm |
YVO4 dopado con Nd al 2% |
|
|
3º Cristal doblador de generación de segundo armónico: 532nm |
KDP KH2PO4 |
|
|
Cavidad láser |
Recubrimiento multicapa |
|
|
Filtro IR |
Incluido |
|
|
Diámetro del haz |
0,75 +/-0,05 |
mm |
|
Divergencia |
>0,5 (colimado) / >5 (expandido) |
mrad |
|
Modo transversal electromagnético |
TEM00 |
|
|
Tiempo de precalentamiento |
<1,0 |
s |
|
Temperatura de operación |
+10 ~ +55 |
°C |
|
Temperatura de almacenamiento |
-40 ~ +85 |
°C |
|
Vida útil de funcionamiento: |
>8000 |
h |
|
Homologación |
CE (Directiva 93/68/EEC) |
|
(SCAR rifle in the photo not included, it is only an explanatory photo of the picatinny rail attachment)
