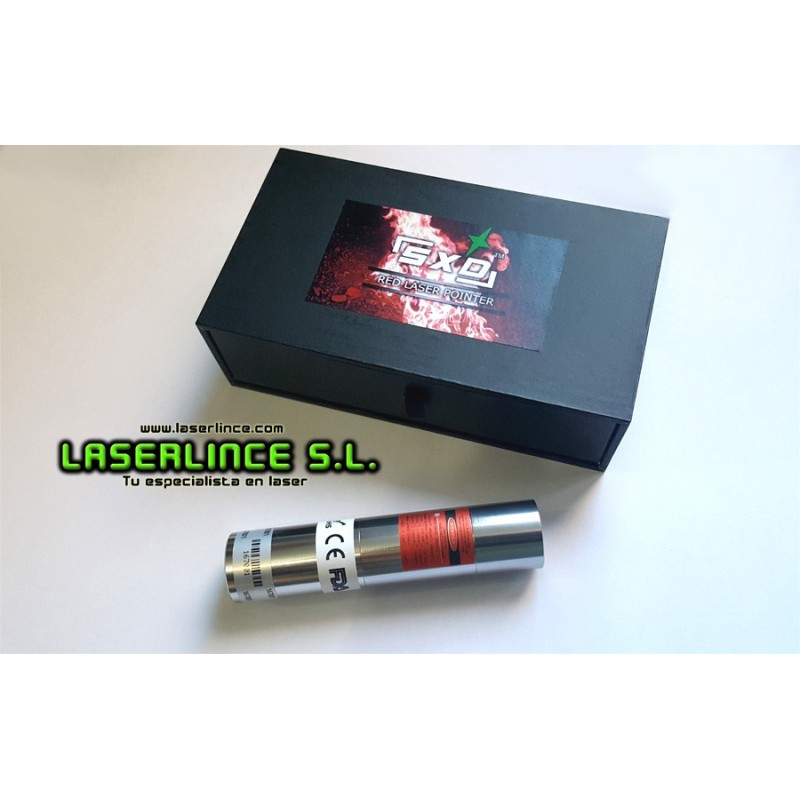

05 Red laser pointer 1000mW (650nm)

Red laser pointer 1000mW (650nm)

TECHNICAL FEATURES

Optical power 1000 mW

Class (according to IEC 60825-1) IV

Emission wavelength (λ) 650 (red) nm

Operating mode CW (continuous)

Manufacturer SXD, Ltd.

Dimensions 109 (length) X 25 (diameter) mm

Operating voltage: 3-4.5 VDC

Operating current: <800 mA

Approximate range in the darkness 03-Apr km

Battery (included) CR123A 3.6VDC

Instructions (included) In Spanish

Red Laser Diode (semiconductors): GaInP / AlGaInP

Laser cavity Multilayer coating

Beam diameter 0.75 +/- 0.05 mm

Divergence <0.6 mrad

Electromagnetic transverse mode &#8776; TEM00

Preheat time <1.0 s

Operating temperature -10 ~ +55 ° C

Storage temperature -40 ~ +85 ° C

Operating lifespan:> 6000 h

CE type approval (Directive 93/68 / EEC)
