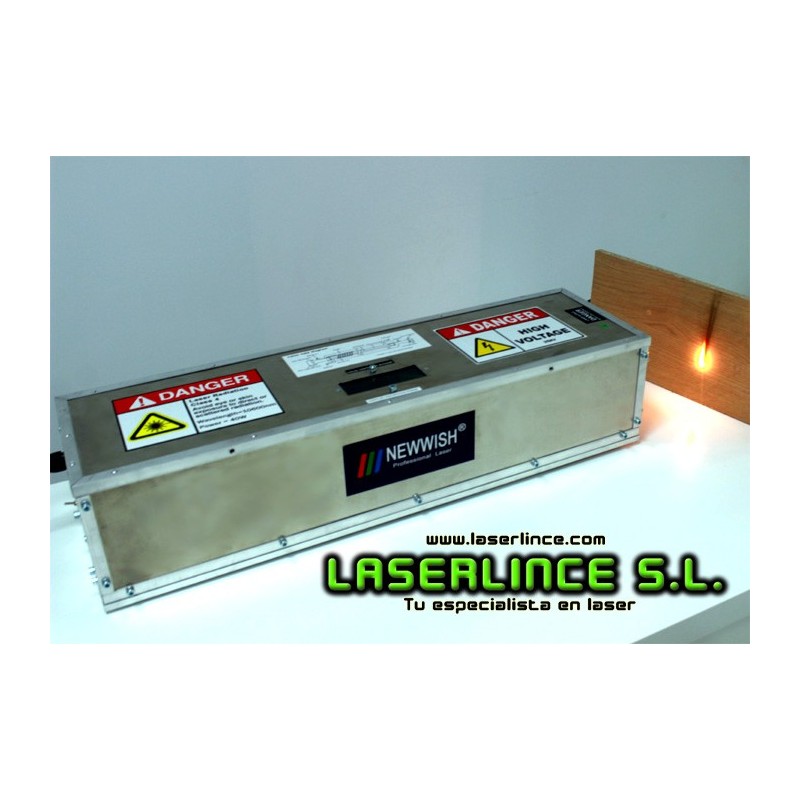

40W CO2 laser module Infrared 10600nm

40W CO2 laser module 10600nm Infrared

Specifications

• Wavelength: 10600nm

• Power: 40000mW

• Input Current system: 220V AC / 50-60Hz

• laser operating voltage: 25000V DC

• Operating current: 20mA

• Power stability: ± 5%

• Beam divergence angle ≦ 4mrad

• ≈ electromagnetic transverse mode TEM00

• Φ point = 2.0 ± 0.3 mm

• active medium is a mixture of CO2 (5-10%), N2 (15-40%) and I (50-80%).

• Material of the outer casing: aluminum alloy

Refrigeration

The system includes a liquid cooling system connected to a radiator + fan.

50% G12 coolant -37C. It can distilled / deionized water.  used

After prolonged use of the laser is convenient stop running the cooling system a few minutes after turning off the laser.
