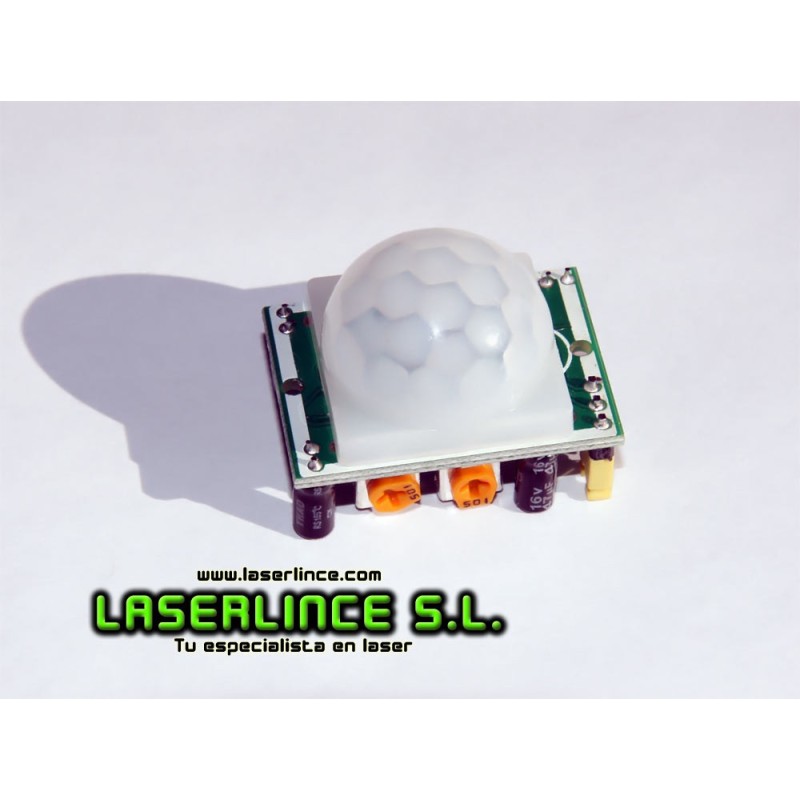

Pyroelectric infrared sensor PIR Motion HC-SR501

Pyroelectric infrared sensor PIR Motion HC-SR501

Description: free

      Detection range Range: Approx. 7m

      Detection angle: <100 degrees

      Operating Voltage Range: 4.5 V-20VDC

      Current consumption at rest: less than 50uA

      Voltage output: 3V High / Low 0V

      Sensitivity and adjustable timeout manually turning knobs with a screwdriver

      Operating temperature range: -15 to +70 º C

     Size: Approx. 32mm x 24mm stock
