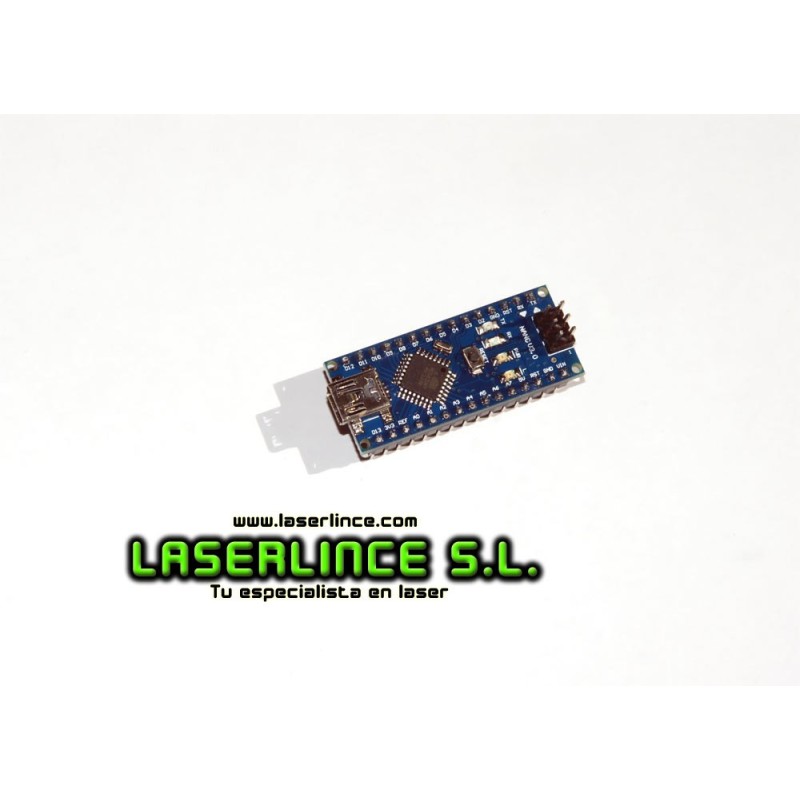

ARDUINO NANO REV3 ATmega328P board

Arduino Nano is a small, full board based on the ATmega328 (Arduino Nano 3.0) used by connecting it to a breadboard.  has more or less the same functionality as the Arduino Duemilanove, but with a different presentation. It has no external power connector, and works with a Mini-B USB cable instead of the standard cable.

Arduino Nano V3 Specifications

Microcontroller: Atmel ATmega328 (ATmega168 earlier)

Operating Voltage (logic level) 5 V

Input Voltage (recommended): 7-12 V

Input Voltage (limits) 6-20 V

Pines E / S Digital: 14 (of which 6 provide PWM output

Analog Inputs: 8

For each PIN Max I / S: 40 mA

Flash Memory: 32 KB (ATmega328) of which 2 KB is used by the bootloader (16 KB - ATmega168)

SRAM 2 KB (ATmega328) (1 KB ATmega168)

EEPROM: 1 KB (ATmega328) (512 bytes - ATmega168)

Clock Frequency: 16 MHz

- To program the board is required USB CABLE TO USB Mini-B (not included).

Click to download drivers and programming environment
