ATN Thermal Viewer Thor 2
€11,000.00
Tax included
Envíos

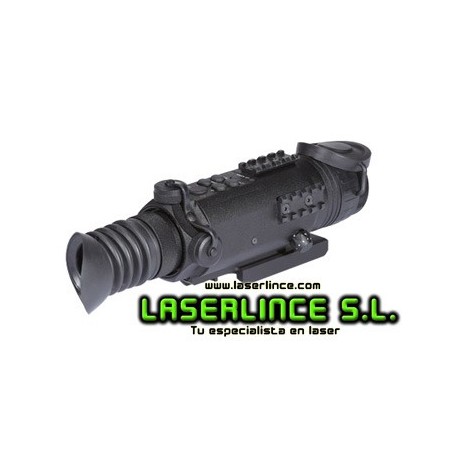

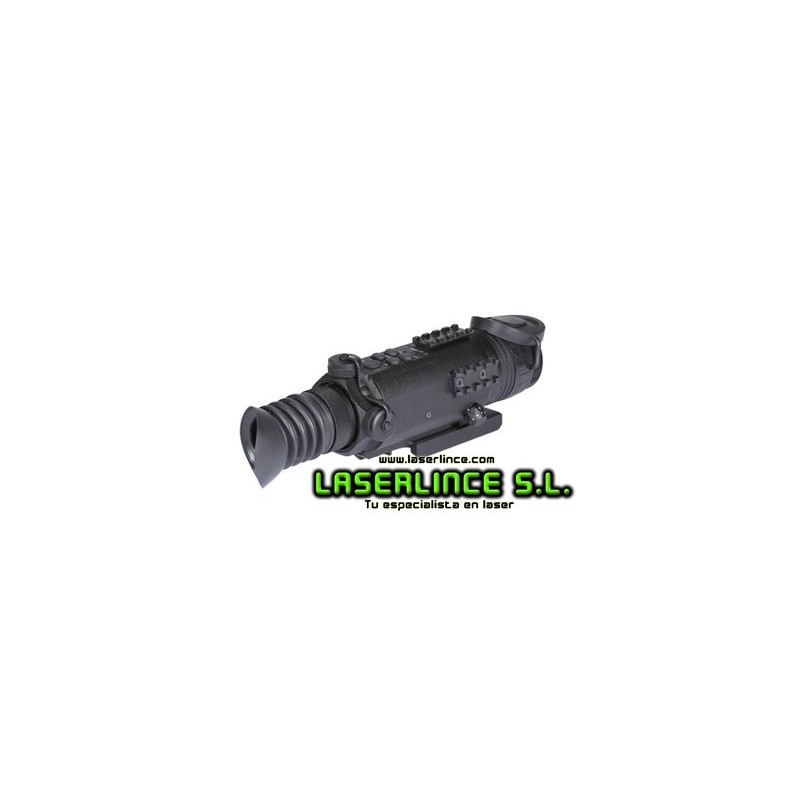

ATN Thermal Viewer TIWSTHOR2x Thor 2
The telescopic sight optics ATN TIWSTHOR Thor 2 combines the ergonomic features of a handheld device and thermal comfort in the mounting arms.
Based on the proven core microbolometer 320 x 240, 2x Thor ATN thermal imager is an ideal product for Force Protection, the Border Patrol officers, police SWAT and could be used to train law.
Features telescopic thermal imaging ATN Thor 2:
• High resolution digital thermal imaging
• Compact, lightweight and durable
• Starting in just 3 seconds
• Up to 6 hours of operation with four lithium batteries
• One year warranty Package
Contents:
• ATN Thermal Viewer TIWSTHOR Thor 2
• lens
• cleaning kit
• Cable Video Manual
• 4 CR123A batteries
• tripod adapter
|
Specifications Sight TIWSOTIS ATN Otis 17 17 |
|
|
Extension: |
1.8 X |
|
Lens focal length: |
25 mm |
|
FOV: |
11 x 8 degrees |
|
Focus Range: |
1m to infinity |
|
Focus Adjustment: |
manual |
|
Eyepiece Diameter: |
14 mm |
|
Diameter display: |
25 mm |
|
Type of detector: |
Uncooled microbolometer |
|
Spectral Response: |
7-14 m |
|
pixels: |
160 x 120 |
|
Pixel Size: |
30 x 30 m |
|
Angular resolution, mrad: |
1.2 |
|
Thermal sensitivity: |
<0.1 C |
|
Detection range of a human: |
475 m |
|
Output Format: |
Analog PAL / NTSC |
|
display: |
Matrix OLED |
|
Screen Format: |
SVGA, 852 x 600 pxl |
|
color: |
black and white |
|
Digital Zoom: |
Fixed 2x (5x optional) |
|
Brightness: |
manual |
|
Contrast Adjustment: |
automatic |
|
User interfaces are available: |
Through USB interface to external PC |
|
Power Interface USB: |
2 x 3V 123Atype |
|
The start time: |
<3 seconds |
|
Operating time with battery pack: |
4 hours |
|
External power supply: |
DC 6V, 500 mA |
|
Temperature range: |
from-20C to +50 C |
|
Waterproof: |
Yes, up to 10 meters immersion |
|
dimensions: |
118 x 78 x 54 mm |
|
Weight (with batteries): |
0.34 kg |
