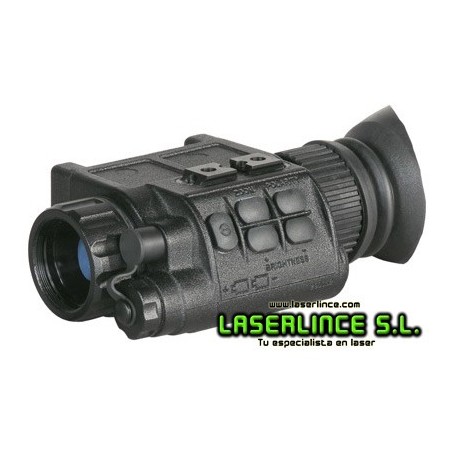

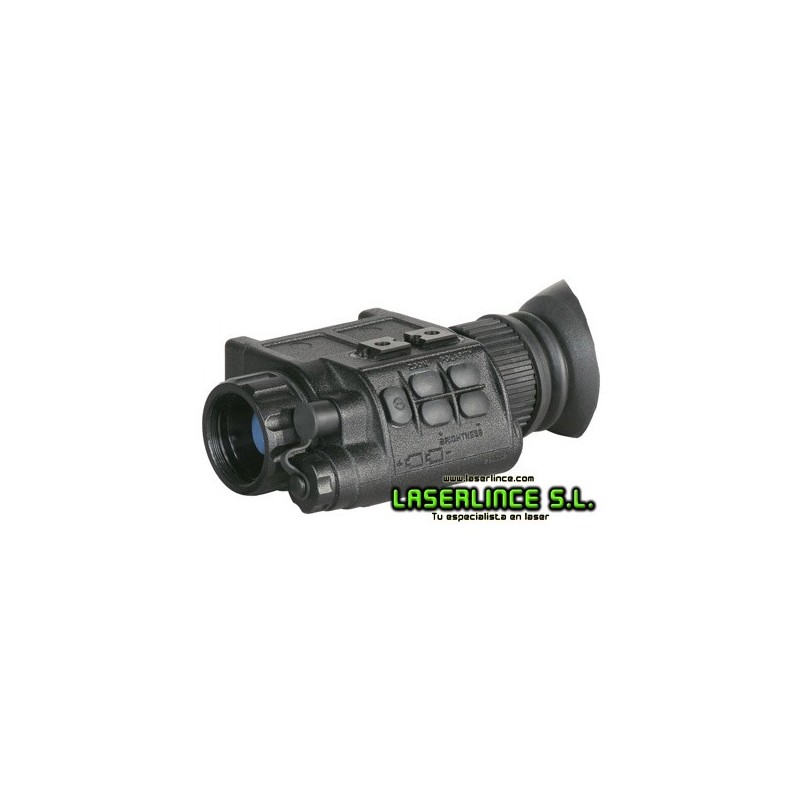

Thermal Visor ATN Otis-17
search
  • Thermal Visor ATN Otis-17
  • Thermal Visor ATN Otis-17
  • Thermal Visor ATN Otis-17
  • Thermal Visor ATN Otis-17

Thermal Visor ATN Otis-17

€8,500.00
Tax included
Quantity



Envíos

The monocular ATN Otis-17 is a compact viewer that allows thermal and monocular vision and mounted weapon.
Use thermal imaging using uncooled microbolometer (unlike other types of infrared sensing equipment, requires no refrigeration), with electronic DSP is a compact and lightweight.
The vision of OTIS17 ATN offers excellent image quality in conditions of total darkness, fog, smoke and other bad weather that prevented clear vision.
This product is ideal for border patrol officers, the shooting sports enthusiasts, private security and special police operations.
Included and optional accessories provide versatility to monocular ATN.
Can be mounted on a head mount or helmet can also be used connected to another to get a monocular binocular etc.
The military display ATN OTIS-17 is a monocular performance, compact size, comfortable to use and its efficiency makes it a perfect device for capturing thermal images.

Viewfinder features Otis17 thermal vision ATN:
• Display high-resolution digital thermal imaging
• Compact, lightweight and durable
• Mount to mount on helmet or headset • High quality optics
• With computer video output
• Video / Image polarity selection
• Waterproof
• Warranty 1 year warranty

Package Contents:
• Thermal Viewer ATN Otis-17 TIWSOTIS17
• Video cable
• Cable for PC
• Two lithium batteries
• Waterproof Hard Case Pellican
• Warranty
• Soft
• Packing Box
• Manual and Guide on CD



Specifications Sight TIWSOTIS ATN Otis 17 17

Extension:

1.8 X

Lens focal length:

25 mm

FOV:

11 x 8 degrees

Focus Range:

1m to infinity

Focus Adjustment:

manual

Eyepiece Diameter:

14 mm

Diameter display:

25 mm

Type of detector:

Uncooled microbolometer

Spectral Response:

7-14 m

pixels:

160 x 120

Pixel Size:

30 x 30 m

Angular resolution, mrad:

1.2

Thermal sensitivity:

<0.1 C

Detection range of a human:

475 m

Output Format:

Analog PAL / NTSC

display:

Matrix OLED

Screen Format:

SVGA, 852 x 600 pxl

color:

black and white

Digital Zoom:

Fixed 2x (5x optional)

Brightness:

manual

Contrast Adjustment:

automatic

User interfaces are available:

Through USB interface to external PC

Power Interface USB:

2 x 3V 123Atype

The start time:

<3 seconds

Operating time with battery pack:

4 hours

External power supply:

DC 6V, 500 mA

Temperature range:

from-20C to +50 C

Waterproof:

Yes, up to 10 meters immersion

dimensions:

118 x 78 x 54 mm

Weight (with batteries):

0.34 kg
