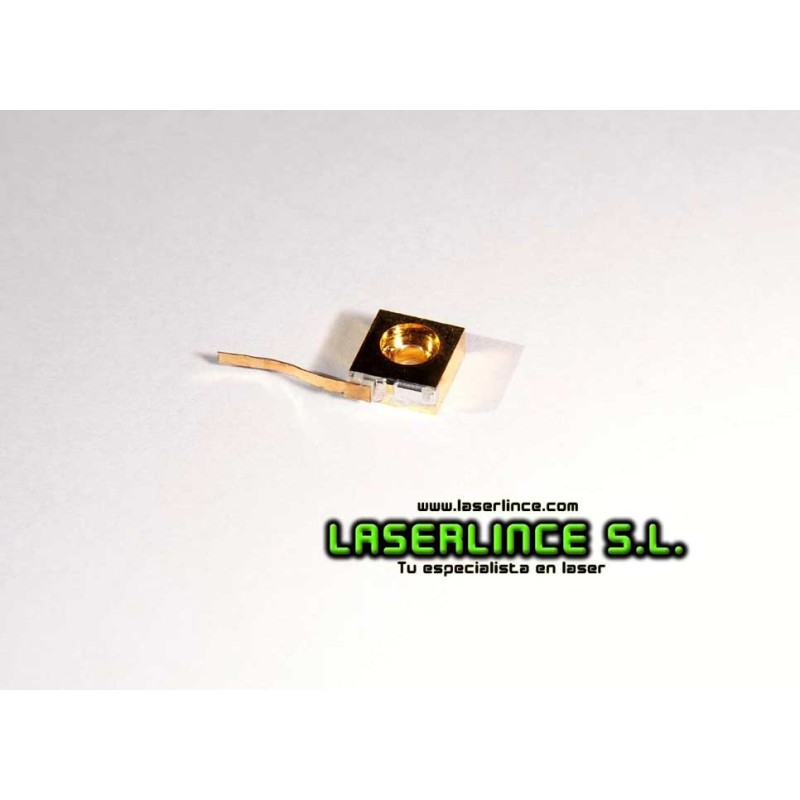

T4 3000mW infrared laser

808nm infrared laser diode power of 3000mW.

Applications:

Beacons and Lighting

Communication equipment

Infrared light source

Technical parameters:

Name: AL808T3000

CW output power (mW): 3000

Wavelength (nm): 808 + / -10

Spectral Width (nm): ≤ 5

Threshold current (mA): ≤ 1000

Operating Current (mA): ≤ 3500

Operating Voltage: ≤ 2.2

The slope efficiency (W / A): ≥ 1.0

Coefficient-temperature wavelength (nm / ℃): 0.3

Beam Divergence (degrees): 3 / 8

Station Area (micron): 200x1

Series resistor (Ω): ≤ 0.25

Life expectancy (h): 10000

Packaged in: C-mount/To-3

On request, approximate delivery time: 15-20 days
